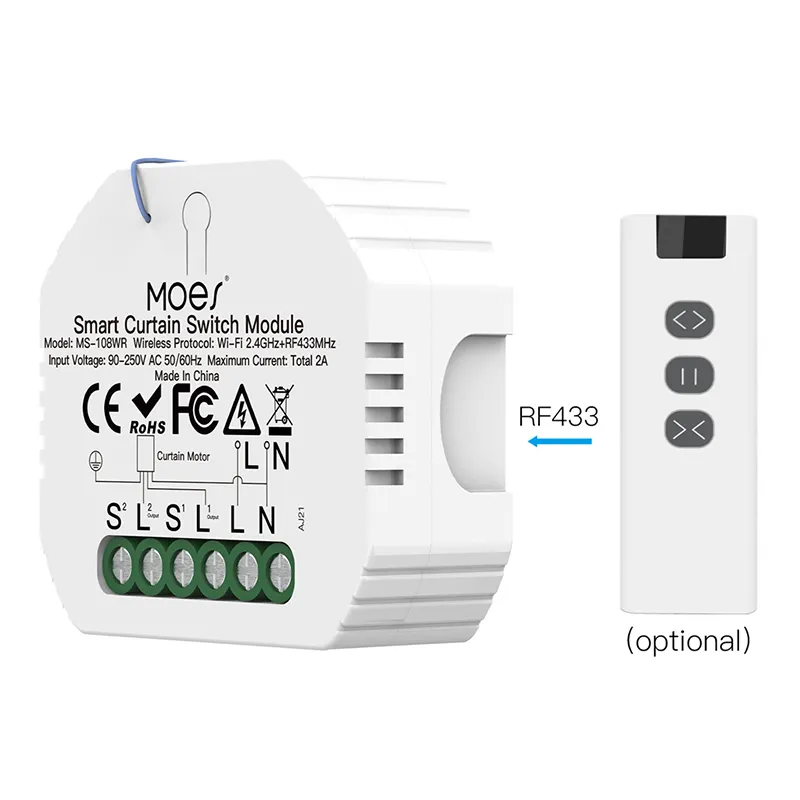

Moes WiFi Mini DIY RF433 Smart Roller Blinds Shutters Curtain Switch Module for Electric Motor

Send Inquiry

Overview

Product Description

1.Use with Much More Convenience: Converts traditional blinds shutters motor into smart devices that can be controlled via voice and app. Also, it can be connected with your roller blinds shutter motor to smartly control your curtains.

2.RF and Wireless Remote Control: Enable to remotely control your connected devices on your smart phone wherever you are. Connects via 2.4 GHz WiFi without a hub; built-in RF433 frequency,so it can be controlled with remote control switch with encoding 1527; compatible with Smart Life or Tuya app, available on Android and iOS.

3.Hands-free Voice Control: Compatible with Amazon Echo and Google Home for hands-free voice-activated control of curtains, blinds shutter, providing your smart life for controlling roller blinds shutter with much more convenience.

4.Timer Setting and Family Sharing:Set automatic timers to open blinds at specific times through the app (schedule, countdown, loop); connects to multiple devices so you can share control with your family.

5.Before you order: ensure motor has 4 wires (motor not included); ensure motor is not DC; Please use this module with RF433 remote control switch (only encoding 1527 required).

TECHNICAL SPECIFICATIONS

Model	MS-108WR
Product Type	Smart Curtain Switch Module
Voltage	90-250V AC 50/60Hz
Current	2A
Max. Power	500W(250V)
Wireless Protocol	Wi-Fi 2.4GHz IEEE 802.11 b/g/n + RF433MHz
Operation Temp	-10℃~+40℃
Case Temp	Tc: +80℃ (Max.)

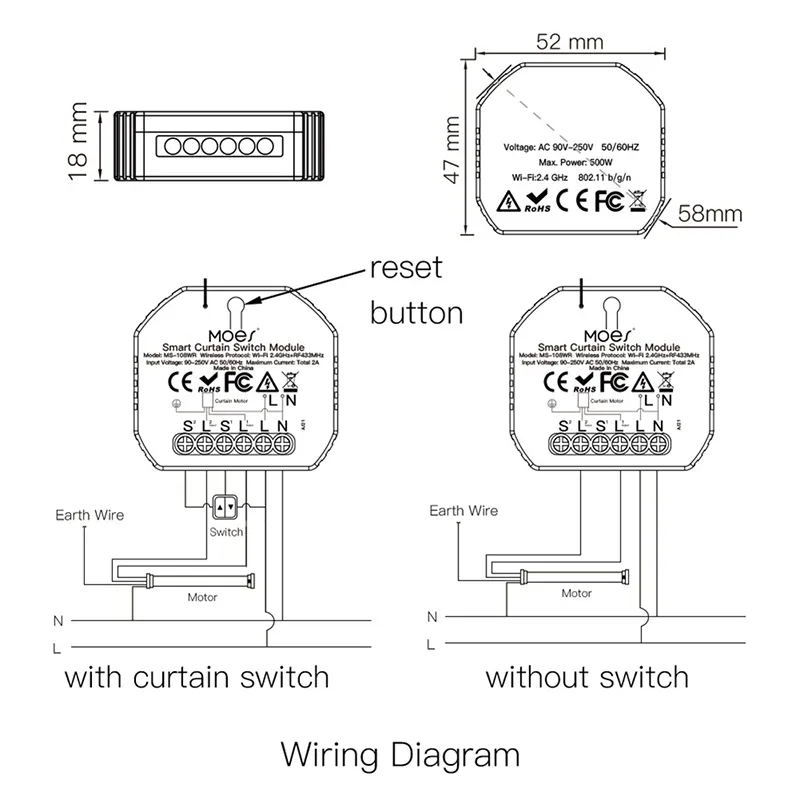

Dims (W×D×H)	52×47×18 mm
IP Rating	IP20
Frequency Band	2.412~2.484GHz
Maximum Radio Transmit Power	<+20dBm
